Default Dissecting a Warn brand Winch Contactor

Well some of you know I have been having issues with my winch.
Short story is - since I've owned it, the 'retract' side has always had issues.
Tapping on the contactor ALWAYS fixed it.
Then it got harder and harder to get it to go.
Eventually got to the point that once it 'caught' I had to stay on it, or letting off it wouldn't work again.

Everyone said it's the contacts, it's the winch, it's junk, toss it, switch wires, etc.
But that didn't fit my scenario. I know enough about this type of stuff to know that it was not dirty contacts or a dying winch.

Well tonight I got it off the machine to dissect it.

Here's what we got. Remember a lot of other brands will be similar, some not. All I needed for this job was my leatherman.



First thing I did was cut the zip tie off around the switch wires, knowing I wouldn't have enough play inside the box.
Then I started removing the screws holding the two halves together. As I did this, I noticed a lot of spring power pushing the halves apart, so I tensed up my grip on the two pieces to avoid things flying out.
This is what I wound up with.

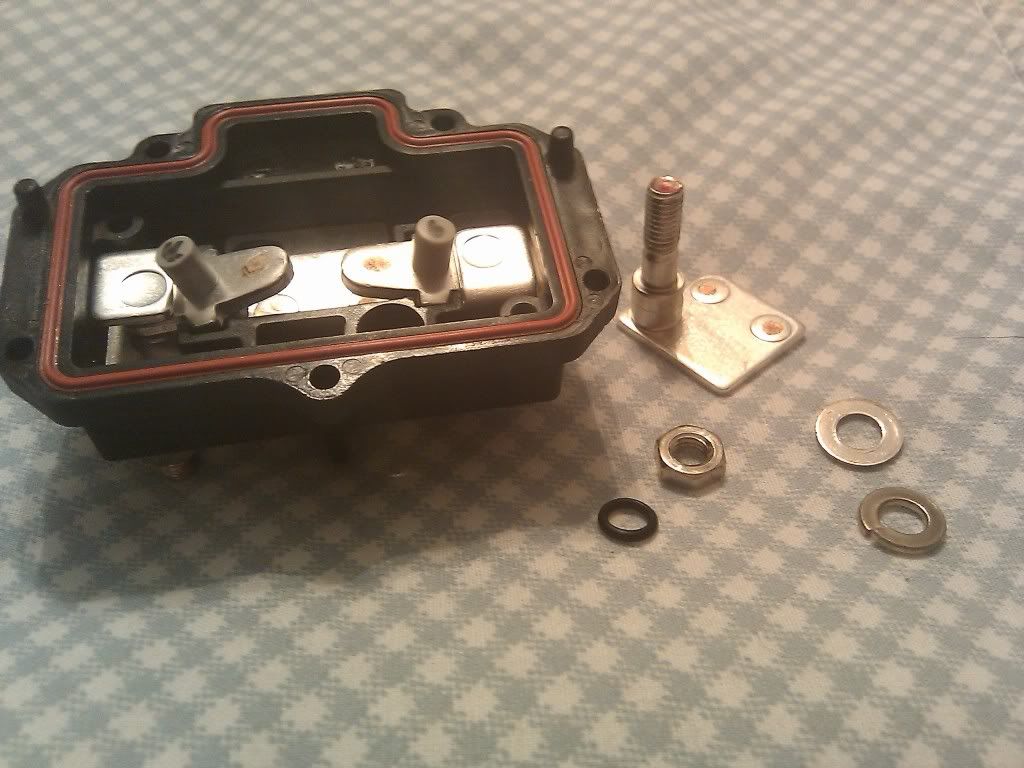

First thing I dug into was the terminal side, two screws and the cover is off.
One thing to note, every screw on this thing is the same size! BONUS!




I noticed one of the slides wasn't very smooth, the contact plate in the center of the piece was twisted. I removed it via the corresponding nut on the terminal and slid it out, made sure that right side moved smooth, reinstalled the terminal and checked again with the plate nice and straight. Perfect motion now. I sense this 'sticking' may have caused the damage on the other side, which you will soon see.
The terminal goes back in, o ring over the stud, then flat washer, lock washer, and nut.

Straightened plate:



Now, to start on the other side.
Remove the two slides and springs from the center.





Remove the two screws at each corner of the plate, and the one screw in the electronic board. Gently pry the board up while feeding in the wire from the back to not tear it.



The whole block should slide out, carefully.
Take a peek.



Yes... there's the problem. The super thin wire that makes up the coils which create the magnetic energy to 'relay' the power... have disconnected from the board. Up until a week ago, I could always let cable out, just not in. Then that stopped too.

Take a close look and you can see how thin the wire is, and where they are supposed to be attached. Not sure if it was excess heat, or the 'sticking' slide part of the relay in the other half that burnt the wire right out of it's solder.



So now I have to see if I know anyone with sharp enough skills to solder some new leads to the board, attach them to the coils, and heatshrink them all. Because the entire assembly is in rather perfect condition otherwise. The overall quality is impeccable, but the weak point is clearly in the coil wiring.

Obviously, to put it all together just reverse all said steps. Just make sure the springs and slides align right etc. I did choose to put mine together for now until I can find someone to fix it. Anyone have suggestions on what type of business might fix such a thing? It's gotta be a cheap fix, it's only a 4 solder points and some heatshrink. Just very delicate.
__________________
-DOUG

BUB BigBore Muffler, K&N w/ outerwears, DynoJet, 22.5 Pilot, Warn 2.5ci, 1.5mm Shim Mod
26x9x12 ITP 589 M/S on ITP C-Series Type 4 Wheels

Last edited by dpawl31; 07-21-2011 at 02:14 AM.

Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
The Following 8 Users Say Thank You to dpawl31 For This Useful Post:
DizGrizz (07-21-2011), DODGE57HEMI (07-26-2011), frednitney (07-21-2011), GrizzlyMan660 (07-26-2011), JHFWIC (07-21-2011), mudslinger828 (07-27-2011), ole brute (07-27-2011), ponti1 (07-21-2011)

  #ADS
Advertiser Advertiser is online
Circuit advertisement

Join Date: Always
Location: Advertising world
Age: 2010
Posts: Many

Thanks: 19
Thanked 44 Times in 24 Posts

Sponsored Links
Advertisement

  #2 (permalink)
Old 07-21-2011, 02:54 AM
liquid1's Avatar
Member

Join Date: May 2011
Location: lake norman nc
Posts: 2,019
Thanks: 689
Thanked 787 Times in 466 Posts
Default

Cool your really getting good at reviews and tutorials..Thanks for posting..looks simple enough..I would if i was closer..
Try a Radio Shack..repair center if theres one near ya..Or a Verizon or cell phone center..Any electronic computer repair shop should be able to fix ya up..I make component repairs out in the field lots of times..Its amazing what ya can do with a slight tiny butane solder torch and solder extractor and heat shrink..Good luck..Great find and diagnoses..by the way..
__________________
Work hard to play hard.
02 520 EXC KTM Woods weapon
2002 NCHSA 4 stroke B 6th place State Championship
contour 1080hd
1998 300 honda 4x4 fourtrax give to my daughter
like new 07 450 red grizzly showroom stock
25" 2.0 bighorns
Full skids
Dyna Jet kit ..Mikuni 135 main, 22.5 mikuni pilot
UNI filter/Stock box, Modified stock exhaust
custom made shovel head exhaust tip
Rt 25 warn winch
http://www.youtube.com/user/liquidktm?feature=mhee
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
  #3 (permalink)
Old 07-21-2011, 06:14 AM
bambisniper's Avatar
Member

Join Date: Jun 2011
Location: Lugoff, SC
Posts: 74
Thanks: 16
Thanked 20 Times in 16 Posts
Default

Very nice write-up and def some great info. I just installed a Warn RT30 on mine so when I start having fits I'll know exactly where to start. I'll just re-wire the coil. Wire does appear to be rather thin, possibly 20-22ga. Are there diodes in there? Usually in a coil related circuit, the use of diodes acts as a snubber. When the coil is charged then discharged, all that potential will arc somewhere without a snubber (exactly how an ignition system works). Bravo my good man and keep up the great work!
__________________
-- GO BIG OR GO HOME --

2008 Grizzly 700 4x4 SE FI EPS *Midnight Armor*

Done:
-Warn RT30- -EHS high flow filters and lid- -EHS Bullet Box- -Barker full dual exhaust w/ billet tips- -Moose utility handguards- -Moose HD front bumper- -Moose HD rear bumper- -Ricochet full skids- -'Zilla 28x10 front- - 'Zilla 28x12 rear- -Billet 1.5" wheel spacers- -Battery tender-



To do:
-Clutch overhaul- -Relocate radiator- -Snorkels- -Gorilla axles-
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
  #4 (permalink)
Old 07-21-2011, 07:35 AM
frednitney's Avatar
Member

Join Date: May 2010
Posts: 230
Thanks: 13
Thanked 84 Times in 52 Posts
Visit frednitney's YouTube
Default

Great Writeup !!
Thank you for the info and closeup pics.
__________________
2009 - 700
K&N Filter
2R Exhaust Tip
Universal "Solex" Cr-Hi Bars
LizardSkin "MOAB" grips 'w' Flame Etching
5" Rox Risers (black)
14" ITP SS108 Rims
26" Maxxis Bighorns
Full Ricochet Skids
Highlifter HD Springs

http://www.youtube.com/user/StealthGrizzly/videos
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
  #5 (permalink)
Old 07-21-2011, 08:02 AM
ponti1's Avatar
Caught me ridin' dirty.
Site Supporter

Join Date: Mar 2011
Location: Beaver Falls, PA
Posts: 1,236

Thanks: 593
Thanked 363 Times in 291 Posts
Default

Thanks for the step-by-step! Let us know how everything works for you once you get the wires reattached and get everything put back together.
__________________
____________________________________________

-Andy-
2011 Grizzly 550 4x4 Auto. (Non-EPS) - GREEN
Valvoline 4T Full Synthetic
28" Maxxis Zilla on OEM Rims
Cycle Country 48" Plow (as needed)
KFI 3000# Winch
2R Racing Exhaust Tip
Hanger Mod
EPI Seondary Spring - PURPLE
1.5mm Shim
1.5" Wheel Spacers
Ricochet Armor
Yamaha Oversized Footpegs
Moose Trailblazer Trunk
Kimpex Passenger Peg System
All else stock...For now.
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
  #6 (permalink)
Old 07-21-2011, 02:03 PM
dpawl31's Avatar
Big D
Member

Join Date: May 2011
Location: Southern NH
Posts: 269

Thanks: 19
Thanked 44 Times in 24 Posts
Visit dpawl31's Facebook Visit dpawl31's YouTube
Default

Thanks guys, still trying to find a place to do it. Thinking some auto shop or car stereo place... don't really have any electronic repair places around here.
__________________
-DOUG

BUB BigBore Muffler, K&N w/ outerwears, DynoJet, 22.5 Pilot, Warn 2.5ci, 1.5mm Shim Mod
26x9x12 ITP 589 M/S on ITP C-Series Type 4 Wheels
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
  #7 (permalink)
Old 07-21-2011, 02:26 PM
rob350's Avatar
Member

Join Date: Jan 2010
Location: Alberta
Posts: 957

Thanks: 123
Thanked 268 Times in 145 Posts
Default

Sitting infront of a computer browsing GR while eating lunch in the electronics lab, I would be more than willing to do it for ya!

Im just an entire country away....
Work also blocks photobucket so i can easily see all of your pics.


I cant wait to get home and see all the pics though!!!
__________________
660 Grizz! Green DUH!


Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
  #8 (permalink)
Old 07-21-2011, 03:16 PM
dpawl31's Avatar
Big D
Member

Join Date: May 2011
Location: Southern NH
Posts: 269

Thanks: 19
Thanked 44 Times in 24 Posts
Visit dpawl31's Facebook Visit dpawl31's YouTube
Default

Thanks Rob, for the help. Jerk. lol!

Hopefully you can give me a tip when you see the pic.

The wire is much thinner than the insulator you see, it's very very thin!
__________________
-DOUG

BUB BigBore Muffler, K&N w/ outerwears, DynoJet, 22.5 Pilot, Warn 2.5ci, 1.5mm Shim Mod
26x9x12 ITP 589 M/S on ITP C-Series Type 4 Wheels
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
  #9 (permalink)
Old 07-21-2011, 07:26 PM
Jfer's Avatar
Enjoy the Ride
Product
PM me for help!

Join Date: Oct 2009
Location: Mountain Home, Arkansas
Posts: 2,512

Thanks: 749
Thanked 862 Times in 576 Posts
Default

Great write up Doug. For sh!t$ & grins contact warn and see if they will replace it. Then you will have a spare when you get that one fixed.
__________________
Check out my awesome 2009 Camo Grizzly at Jfer's Garage
League of Extraordinary Grizzlymen

Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
  #10 (permalink)
Old 07-21-2011, 10:18 PM
rob350's Avatar
Member

Join Date: Jan 2010
Location: Alberta
Posts: 957

Thanks: 123
Thanked 268 Times in 145 Posts
Default

Looking at that little board, the little contact points, are the hollow? (just currently filled with solder)

If so, how about removing the solder from inside the holes, putting the wire through and sorta bent or ball it up on the other side to help hold it in place.
Then put on some soldering past/flux, and try soldering it in place.

Are you able to go one step further and remove the coil cover? Looks like you need more wire length, so im wondering if you could just unwrape a coil or two?
If not, is there enough to try soldering on a little piece of wire to extend it? Could get some small heat shrink, or use brush on electrical tape.

From here the wire does not look burnt, or is it just the camera?
__________________
660 Grizz! Green DUH!



Last edited by rob350; 07-21-2011 at 10:25 PM.
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
Reply
